| Feature | Unit | Value |
|---|---|---|

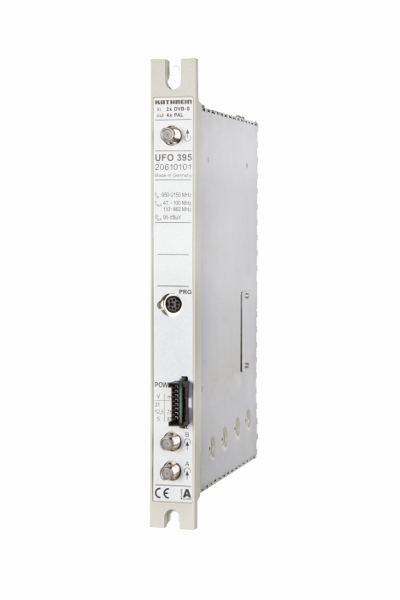

| Type Order no. | UFO 395 20610101 | |
| Frequency range (MHz) | Input 950-2,150 ¹) | Ch Ch |
| Frequency range (MHz) | Output 47-100/110-862 ²) | Ch-Ch Ch-Ch |
| Input level | (dBµV) | 50-85 |
| Input data rate | (MS/s) | 2-45 |
| Signal-to-noise ratio ³) S/N weighted | (dB) | 60 |
| Max. output level/setting range | (dBµV) | 95/85-95 |
| Video/audio carrier level spacing T1/T2 | (dB) | 13/20 |
| Current drain without/with UFZ 394 | (V/mA/mA) | 5/900/1300 12.5/750/800 31/9/9 |
| VPE 1 | 1 | |
| EAN 1 | 4021121483981 | |
| VPE 2 | 10 | |
| EAN 2 | 4021121491108 | |
| Customs tariff number | 85256000 |
¹) Settable in 1 MHz steps and fine tuning through AFC
²) Settable in the 7/8 MHz channel plan, fine tuning in 50 kHz steps
³) Channel unit's intrinsic value
