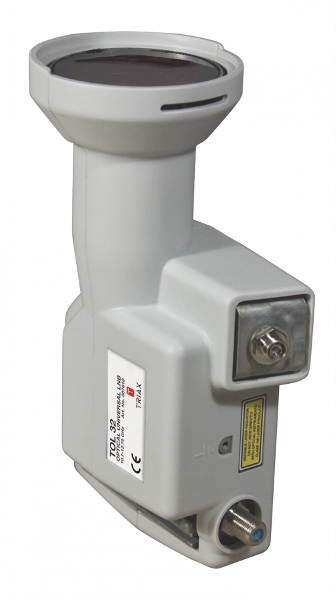

Optik LNB (Çıkışı 32'ye kadar bölünebilir)
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663076105 |
| OPTICAL CHARACTERISTICS | |
| Optical budget for PON (max.) | 19.0 dB |
| Optical output level (nom. @ 25 °C) | 7 dBm |
| Optical splitting in PON (max.) | 32 |
| CHARACTERISTICS | |
| Feedhorn diameter | 40 mm |
| Fibre link distance max. (subject to PON loss) | 10 km |
| Laser class | 1M |
| L.O. frequency, horisontal | 7.3 GHz |
| L.O. frequency, vertical | 9.75 GHz |
| Reception frequency range | 10.7 - 12.75 GHz |
| Reception polarization | horizontal & vertical |
| SAT-IF horizontal band, stacked HL + HH | 3.4 - 5.45 GHz |
| SAT-IF vertical band, stacked VL + VH | 0.950 - 3.0 GHz |
| Spurious in SAT-IF band | -25 dBc |
| Wavelength | 1310 nm |
| GAIN | |
| Gain | 62 - 72 dB |
| Noise figure (typical) | 0.5 dB |
| ISOLATION | |
| Cross polar isolation (typ.) | 30 dB |
| OPERATIONAL | |
| DC Operating voltage | 12 VDC |
| External PSU item ID | 307658 (TPS322-12Vdc/0.5A) |
| External PSU | Included |
| Temperature - operating | -30 ... +60 °C |
| Temperature - storage | -40 ... +70 °C |
| Weather Proof Rating | IP 65 |
| DC Current consumption | < 450 mA |
| CONNECTORS | |
| Connector | Optical - FC/PC |
| Connector Optical | Optical - FC/PC |
| Connector power supply | F-female |
| Connector OUT | Optical - FC/PC |
| MECHANICAL | |
| Dimensions product (H x D x W) | 173 x 108 x 68 mm |
| Packaging Depth | 0,180 m |
| Packaging Height | 0,083 m |
| Total Weight | 0,798 kg |
| Packaging Width | 0,115 m |
| Net Weight | 0,750 kg |
| Remarks | 230 VAC -> 12 VDC/0,5A |
| Tara Weight | 0,048 kg |
| Packaging Volume | 0,002 m3 |
