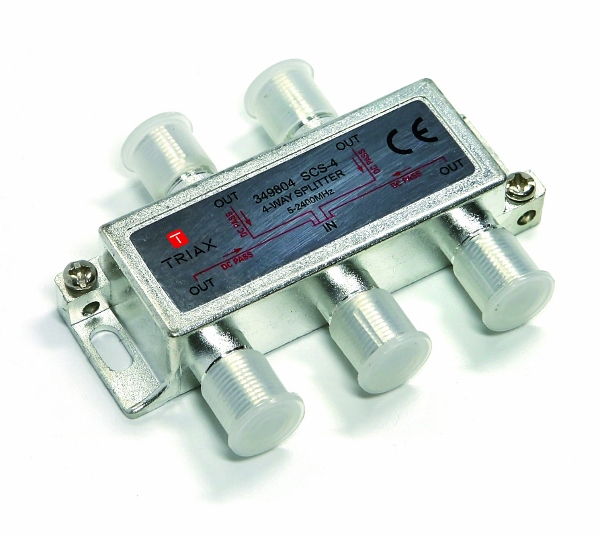

4 Yollu Bölücü RF+IF
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663498044 |
| SHIELDING | |
| Shielding effeciency VHF/UHF | > 110 dB |
| CHARACTERISTICS | |
| Type | COAX splitter |
| FREQUENCY | |
| Frequency range | 5...2400 MHz |
| ISOLATION | |
| Isolation (tap-tap) 1000-2150 MHz | 22 dB |
| Isolation (tap-tap) 2150-2400 MHz | 23 dB |
| Isolation (tap-tap) 40-1000 MHz | 23 dB |
| Isolation (tap-tap) 5-40 MHz | 25 dB |
| RETURN LOSS | |
| Return Loss (in-out) 1000-2150 MHz | 12.0 dB |
| Return loss (in-out) 2150-2400 MHz | 14.0 dB |
| Return loss (in-out) 40-1000 MHz | 11.5 dB |
| Return loss (in-out) 5-40 MHz | 10.0 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Certification | CE, RoHS II |
| DC Passthrough | Yes (max. 500mA) |
| Screening Efficiency | Class A |
| CONNECTORS | |
| Connector Type | F-female |
| Number of inputs | 1 |
| Number of outputs | 4 |
| MECHANICAL | |
| Product Depth | 16 mm |
| Extra high bracket (Optional) | 2 x BS-Brackets Small 1-4 T&S (Art.No.342100) |
| Packaging Depth | 0,074 m |
| Packaging Height | 0,018 m |
| Total Weight | 0,062 kg |
| Packaging Width | 0,055 m |
| Net Weight | 0,062 kg |
| Packing QTY | 1 |
| Product Width | 74 mm |
| Product Height | 56 mm |
