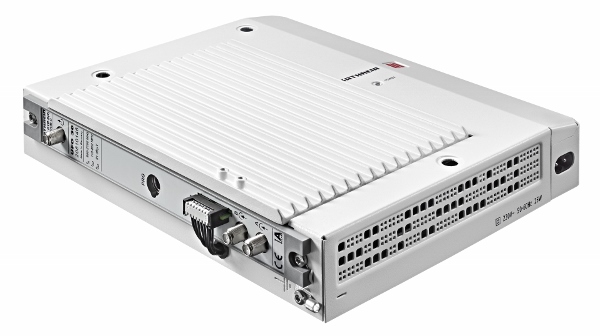

| Feature | Unit | Value |
|---|
| Inputs | | |
| Sat-IF input | | 2 x F-type coonectors, 75 Ohm |
| Frequency range | MHz | 950 ... 2,150 |
| Decoupling (Tap-Tap) | dB | Min. 25 |
| Return loss | dB | Typ. 6 |
| Front end | | |
| DVB-S2 | | 8 x |
| Frequency steps | MHz | 1 (950 ... 2,150 MHz) |
| AFC adjustment range | MHz | ± 3 (Symbol rate < 10 Ms/s) ± 5 (Symbol rate > 10 Ms/s) (950 ... 2,150 MHz |
| Input level range | dBµV | 60 ... 110 |
| Permissible level difference | dB | 12 |
| Demodulation DVB-S | | |
| Standard | | EN 300 421 (1) |
| Input symbol rate QPSK | MS/s | 2 ... 45 |
| Code rate (Viterbi) | | 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 |
| Roll off | % | 35 |
| Demodulation DVB-S2 | | |
| Standard | | EN 302 307 (2) |
| Input symbol rate QPSK | MS/s | 1 ... 34 |
| Code rate (LDPC) | | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Input symbol rate 8PSK | MS/s | 1 ... 28.9 |
| Code rate (LDPC) | | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 |
| Roll off | % | 20/25/35 |
| MPEG-TS processor | | |
| Programme filter | | |
| PID filter | | |
| PSI/SI processing | | PCR correction |
| Stuffing | | automatic |
| QAM modulator | | |
| Output channels | | 8 x DVB-C (J.83A) as adjacent channels |
| QAM constellation | QAM | 16, 32, 64, 128, 256 |
| Symbol rate | MS/s | 2.25 ... 7.25 |
| Roll off | % | 15 |
| RF output | | |
| DVB-C output | | 1 x F-type connector/75 Ohm |
| Frequency range | MHz | 47 ... 1,006 (fine adjustment in 250 kHz steps) |
| Frequency range (channel list) | MHz | 110 ... 1006 (settable over the channel list) |
| Return loss | dB | 14 (47 MHz) -1.5 dB/oct. |
| Output level | dBµV | 91 |
| Setting range output level | dB | -20 (in 0.5 dB steps) |
| Level stability | dB | Typ. ± 0.5 |
| Frequency stability | ppm | Typ. 35 |
| MER | dB | Typ. >= 45 |
| Roll-off attenuation | dB | >= 60 (at standard level) |
| Spurious emissions | dB | >= 60 |
| System data | | |
| Power consumption | W | Typ. 25 |
| Temperature range | °C | 0 ... +40 |
| Mains voltage | V | 230 ± 10% |
| Dimensions (H x W x D) | mm | 282 x 240 x 60 |
| Weight | kg | 2.5 |
| VPE 1 | | 1 |
| EAN 1 | | 4021121523694 |
| Customs tariff number | | 85256000 |
