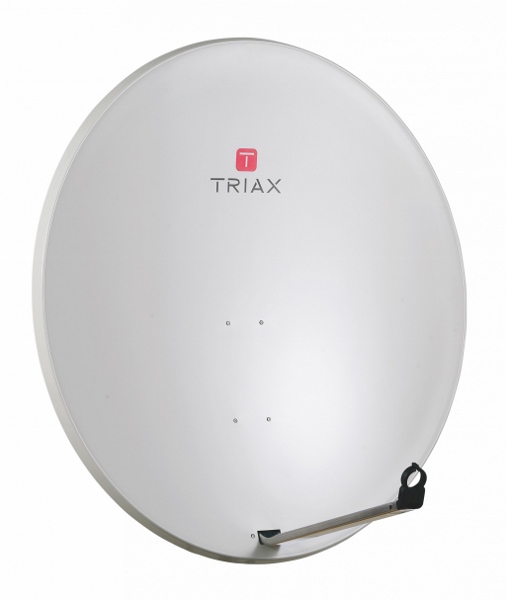

110cm İthal Ofset Uydu Anteni, standart, çelik saç.
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702661201219 |
| CHARACTERISTICS | |
| Elevation range | 10-60 ° |
| G/T LNB 0.7 | 20.6 dB/K |
| Offset angle | 26 ° |
| Type | TD 110 |
| X-polarisation | >27 dB |
| FREQUENCY | |
| Frequency range | 10.7 - 12.75 GHz |
| GAIN | |
| Gain @ 11.7 GHz | 40.2 dBi |
| MECHANICAL | |
| Arm colour | raw |
| Back structure colour | raw |
| Beamwidth | 1.8 ° |
| Colour | RAL 7035 |
| Dimensions carton (H x D x W) | 1195 x 1070 x 155 mm |
| Dish colour | RAL 7035 |
| Finish | Polyester powder coat |
| Packaging Depth | 1,195 m |
| Packaging Height | 0,155 m |
| Total Weight | 11,400 kg |
| Packaging Width | 1,070 m |
| LNB holder | 23-40mm / Black |
| Mast bracket diameter | <60 mm |
| Main Material | Galvanized Steel |
| Net Weight | 8,900 kg |
| Packing QTY | 1 |
| Reflector type | Offset |
| Remarks | Singlepacked |
| Tara Weight | 2,500 kg |
| Packaging Volume | 0,198 m3 |
| Width (cm) | 100 cm |
| Windload @ 42 m/s | 1222 N |
| Height (cm) | 105 cm |
