| Feature | Unit | Value |
|---|

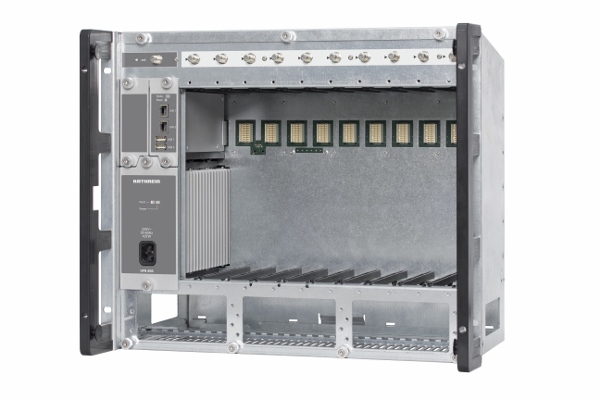

| Type of mounting | | Installation in 19" cabinets or for wall mounting |
| Number of insert positions | | Ten modules, one power supply unit (UFN 800 pre-assembled), two functional modules (UFX 800 pre-assembled, and an additional one) |
| Power-supply unit (UFN 800, 20610121) | | |
| Mains voltage | V/Hz | 230 ± 10 %/50 ... 60 |
| Power consumption max. | W | 437 |
| Secondary voltage/max. permissible current | V/A | 12.3/32.5 |
| Signalisation | LED | Green (normal operation), Red (undervoltage or excess current), Red flashing (overvoltage) |
| Output data | | |
| Connection loss | dB | Typ. 15 |
| General | | |
| Extractor fan | | 2 |
| Dimensions (H x W x D) | mm | 399 x 483 x 266 |
| Permissible ambient temperature | °C | -20 ... +50 |
| Weight | kg | 15.5 |
| VPE 1 | | 1 |
| EAN 1 | | 4021121518157 |
| Customs tariff number | | 85177090 |
