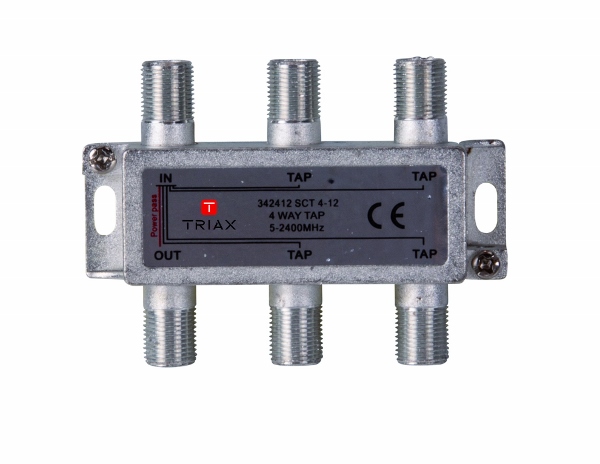

4x12dB Dağıtıcı RF+IF
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663424128 |
| SHIELDING | |
| Shielding effeciency VHF/UHF | > 110 dB |
| CHARACTERISTICS | |
| Type | COAX tap |
| FREQUENCY | |
| Frequency range | 5...2400 MHz |
| LOSS | |
| Tap Loss (in-tap) 1000-2150 MHz | 14.0 (± 2.0) dB |
| Tap loss (in-tap) 2150-2400 MHz | 14.0 (± 2.5) dB |
| Tap loss (in-tap) 40-1000 MHz | 12.0 (± 1.2) dB |
| Tap loss (in-tap) 5-40 MHz | 12.0 (± 1.2.) dB |
| ISOLATION | |
| Isolation (out-tap) 1000-2150 MHz | 22 dB |
| Isolation (out-tap) 2150-2400 MHz | 23 dB |
| Isolation (out-tap) 40-1000 MHz | 27 dB |
| Isolation (out-tap) 5-40 MHz | 28 dB |
| Isolation (tap-tap) 1000-2150 MHz | 23 dB |
| Isolation (tap-tap) 2150-2400 MHz | 23 dB |
| Isolation (tap-tap) 40-1000 MHz | 23 dB |
| Isolation (tap-tap) 5-40 MHz | 24 dB |
| RETURN LOSS | |
| Return Loss (in-out) 1000-2150 MHz | 12.0 dB |
| Return loss (in-out) 2150-2400 MHz | 12.0 dB |
| Return loss (in-out) 40-1000 MHz | 14.0 dB |
| Return loss (in-out) 5-40 MHz | 11.0 dB |
| Return Loss (tap) 1000-2150 MHz | 13.0 dB |
| Return loss (tap) 2150-2400 MHz | 13.0 dB |
| Return loss (tap) 40-1000 MHz | 15.0 dB |
| Return loss (tap) 5-40 MHz | 13.0 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Certification | CE, RoHS |
| DC Passthrough | Yes IN-OUT (max. 500mA) TAPS DC blocked |
| Screening Efficiency | Class A |
| CONNECTORS | |
| Connector Type | F-female |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Number of taps | 4 |
| MECHANICAL | |
| Product Depth | 16 mm |
| Extra high bracket (Optional) | 2 x BS-Brackets Small 1-4 T&S (Art.No.342100) |
| Packaging Depth | 0,075 m |
| Packaging Height | 0,020 m |
| Total Weight | 0,066 kg |
| Packaging Width | 0,060 m |
| Net Weight | 0,066 kg |
| Packing QTY | 1 |
| Product Width | 74 mm |
| Product Height | 57 mm |
